Product Details

The M18 FUEL w/ ONE-KEY High Torque 3/4” Impact Wrench with Friction Ring provides the maximum power, minimum length, and maximum repeatability! The POWERSTATE Brushless motor delivers up to 1627Nm of fastening torque and 2034Nm of nut-busting torque, providing users a cordless solution that will eliminate the need for corded Impact Wrenches. The industry’s most compact cordless High Torque Impact wrench at 218mm in length, this tool allows for more access in tight spaces. REDLINK PLUS intelligence prevents damage to the tool and battery due to overloading or overheating. REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery. Compatible with ONE-KEY, this is the industry’s first High Torque Impact Wrench that wirelessly connects to a smart phone to customise, track and manage a tool’s performance and location. Unlimited Tool Customisation allows you to connect to the tool and access predetermined set-ups for specific fasteners and materials, or have complete control over output speed and power for the specific application at hand. With ONE-KEY, users now have a tool that delivers the most repeatable torque output in the industry. Users looking for a targeted torque range now have solution that will get users close to their targeted torque value, reducing the likelihood of significant under or over torque. Users will experience less rework, less damage, and increased productivity that will get users closer to their torque target and will finish with a calibrated torque device to reach their targeted torque value. The tool’s memory supports up to 4 custom profiles that can be easily accessed with the touch of a button on the tool. Once the profiles are saved to the tool, the connection to the smart phone is no longer necessary. Your custom profiles are also saved in the cloud so that they can be accessed at any time. Integrated tool tracking, also available through ONE-KEY, provides full visibility to how and where tools are being used across your network of jobs and users. The app will track all ONE-KEY compatible devices within the 30.5m range of your phone. By building the functionality into the tool, not the battery, all devices are trackable even if the battery is not charged or on the tool. The app will automatically keep records of the last time a tool was within range of the app, allowing you to pinpoint missing tools quicker and increase accountability of your crew. If you’re having trouble locating a lost tool, expand your search with the help of anybody with the ONE-KEY app. By opting in, when any phone with the app comes within 30.5m of your tool, you will receive an updated location. Paired with tracking, Integrated Tool Security provides the ultimate theft protection. Protect your investment with features like tool lock-out, or hide tool from the nearby devices screen so only you can see your tool is in range. If your tool is lost or stolen, render it useless by sending a remote command to the tool to shut itself off the next time it comes within range of any ONE-KEY app.

Specifications

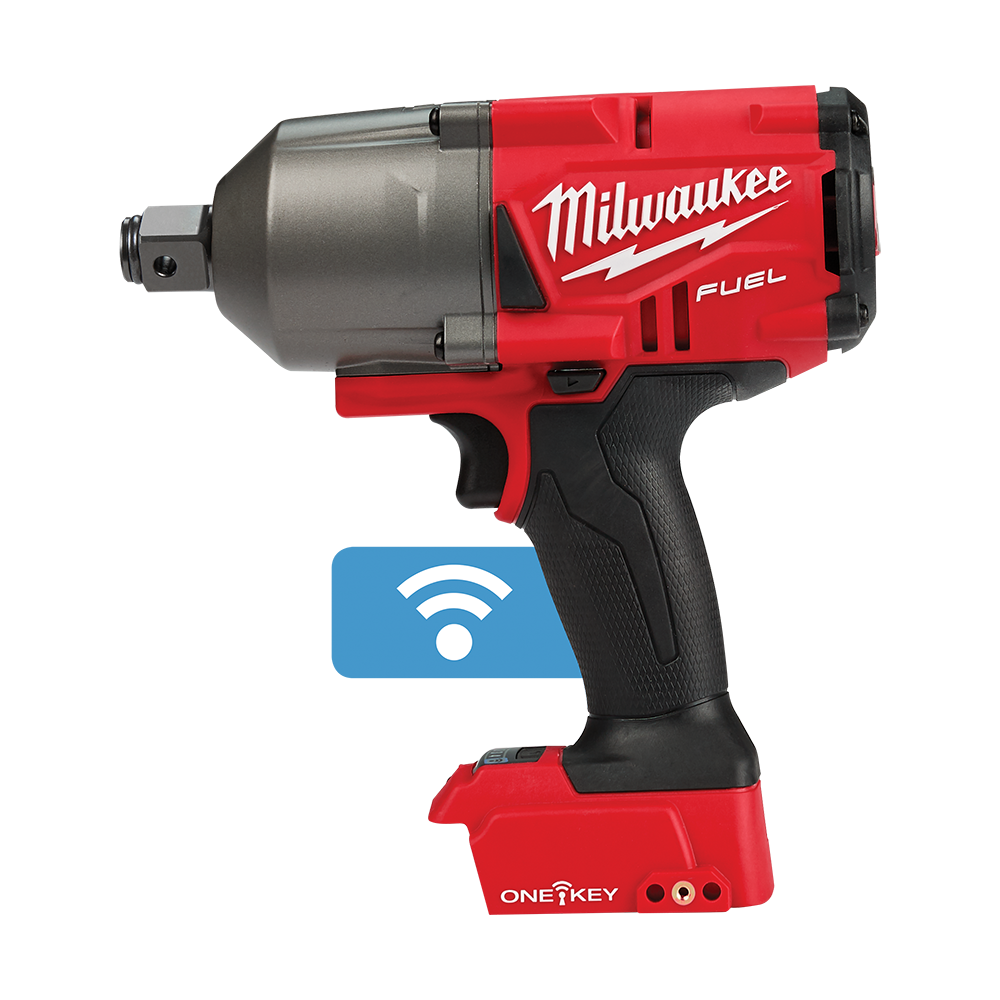

M18 FUEL™ ONE-KEY™ High Torque Impact Wrench 3/4" w/ Friction Ring (Tool Only)

M18 FUEL™ ONE-KEY™ 3/4" High Torque Impact Wrench with Friction Ring (Tool Only)

M18ONEFHIWF34-0
M18 FUEL™ ONE-KEY™ High Torque Impact Wrench 3/4" w/ Friction Ring (Tool Only)
M18 FUEL™ ONE-KEY™ High Torque Impact Wrench 3/4" w/ Friction Ring (Tool Only)
M18 FUEL™ ONE-KEY™ High Torque Impact Wrench 3/4" w/ Friction Ring (Tool Only)
M18 FUEL™ ONE-KEY™ High Torque Impact Wrench 3/4" w/ Friction Ring (Tool Only)

M18 FUEL™ ONE-KEY™ 3/4" High Torque Impact Wrench with Friction Ring (Tool Only)

M18ONEFHIWF34-0
In Stock
View Full Details

Features

Up to 2034Nm of Nut-Busting Torque
Most compact cordless High Torque Impact Wrench in its class at 218mm
ONE-KEY™ Compatible: Customise, Track and Manage tool's performance and location
M18 FUEL™ with ONE-KEY™ technology provides the most repeatable impact wrench in the industry
Easily toggle up to four custom performance profiles that can be saved to the memory of the tool
Premium rubber overmold withstands corrosive materials and provides increased comfort when in use
LED light to illuminate the work area
Features a friction ring with thru-hole design to ensure quick and easy socket changes

Specifications

Platform M18 FUEL™ / ONE-KEY™
Voltage 18V
Type Cordless
Anvil Type Friction Ring
Anvil Size 3/4"
Nut Busting Torque 2,034Nm
Fastening Torque 1,627Nm
IPM 0-2,400
No Load RPM 0-1,850
Drive Control 4-Mode, Customisable
Battery M18™ REDLITHIUM™
Length 218mm
Weight 2.9kg
Warranty 5 Years
Torque Level High
M18™ 5.0Ah REDLITHIUM™-ION Extended Capacity Battery

M18™ REDLITHIUM™ 5.0Ah Battery

M18B5
M18™ 5.0Ah REDLITHIUM™-ION Extended Capacity Battery
M18™ REDLITHIUM™ 5.0Ah Battery, , hi-res
M18™ 5.0Ah REDLITHIUM™-ION Extended Capacity Battery
M18™ 5.0Ah REDLITHIUM™-ION Extended Capacity Battery
M18™ REDLITHIUM™ 5.0Ah Battery, , hi-res

M18™ REDLITHIUM™ 5.0Ah Battery

M18B5
In Stock
View Full Details

Features

Versatility: Powers more than 250+ MILWAUKEE® M18™ cordless power tools.
REDLINK™ intelligence. Provides optimised performance and over load protection.
Best in class construction. Offers long lasting performance and durability.
Fuel gauge on board. Displays remaining run time for less down time on the job.

Specifications

Platform M18™
Amp Hour 5
Voltage 18V
Warranty 2 Years
Weight 720g
M18™%20%26%20M12™ Rapid Charger

M12™ & M18™ Rapid Charger

M12-18FC
M18™%20%26%20M12™ Rapid Charger
M18™%20%26%20M12™ Rapid Charger
M18™%20%26%20M12™ Rapid Charger
M18™%20%26%20M12™ Rapid Charger

M12™ & M18™ Rapid Charger

M12-18FC
In Stock
View Full Details

Features

Charges batteries up to 40% faster.
Charges all M12™ and M18™ batteries.
Sequential charging: automatically charges the second inserted pack once the first pack is fully charged.
REDLINK™ Intelligence: charger communicates with the battery pack to ensure optimum performance and extend life
M18™ REDLITHIUM™ 2.0 Ah / 4.0 Ah / 5.0 Ah battery packs recharge in 27 min / 48 min / 60 min or less
M18™ REDLITHIUM™ HIGH OUTPUT™ 3.0 Ah / 6.0 Ah / 8.0 Ah / 12.0 Ah battery packs recharge in 35 min / 65 min / 83 min / 130 min or less
M12™ REDLITHIUM™ 2.0 Ah / 3.0 Ah / 4.0 Ah / 6.0 Ah battery packs recharge in 30 min / 46 min / 60 min / 103 min or less

Specifications

Platform M18™ / M12™
Voltage 12v and 18v
Weight 0.8kg
Warranty 2 Years
