REDLITHIUM™ USB Rechargeable Cross Line Laser Kit

L4CLL-301C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable Cross Line Laser Kit, , hi-res

REDLITHIUM™ USB Rechargeable Cross Line Laser Kit

L4CLL-301C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

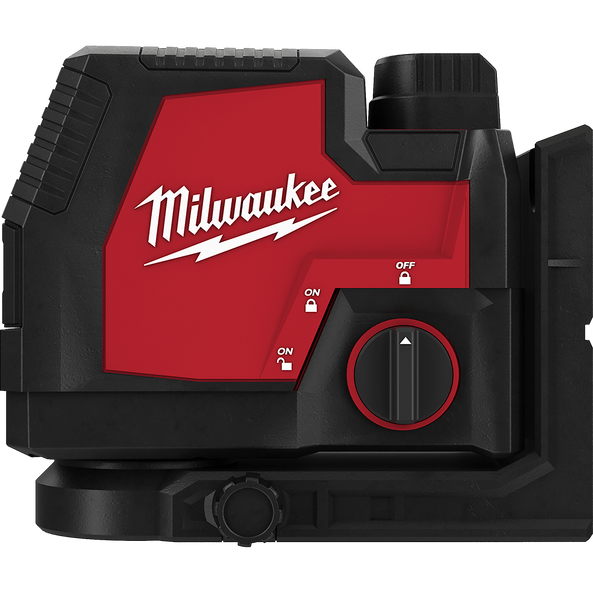

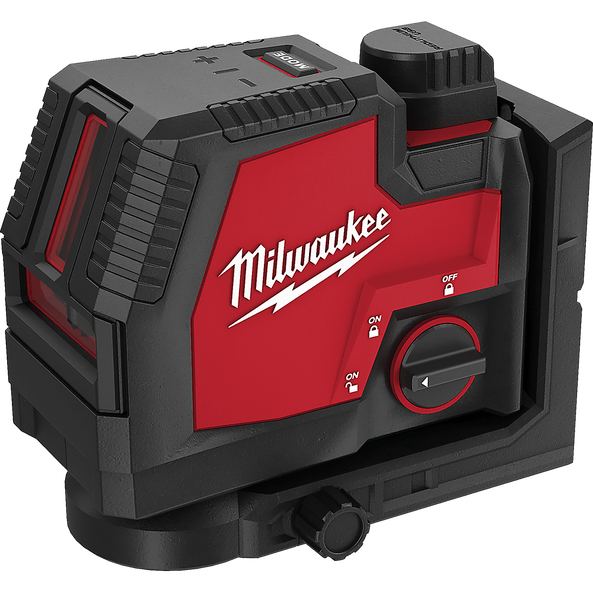

The REDLITHIUM™ USB Rechargeable Cross Line Laser provides an all-in-one functionality with horizontal levelling and vertical alignment. It is powered by REDLITHIUM™ USB, delivering users maximum run-time and uncompromised visibility. The high-intensity laser beams allow the green lines to be visible up to 30 meters for fast, accurate leveling and alignment. The magnetic bracket features micro control, providing you with a faster set-up and point to point alignment at long distances. The REDLITHIUM™ USB Rechargeable Cross Line Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment. Users can charge REDLITHIUM™ USB Batteries inside the laser via a Micro USB or swap it out with additional REDLITHIUM™ USB Batteries for virtually no downtime.

Read More
Specifications What's Included Resources Reviews

Specifications

Features

Features

8 hours of runtime on a single charge using REDLITHIUM™ USB 3.0Ah battery
Visibility range of up to 30 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
Internally charges REDLITHIUM™ USB batteries via micro-USB port
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

Specifications

Specifications

Platform REDLITHIUM™ USB
Kit Yes
IP Ratings IP54
Dimensions 89
Weight 1.0 kg​
Warranty 2 Years
Number of Beams​ 2 Lines​
Locking Pendulum​ Yes​
Self-Leveling​ ± 4° Tilt​
Accuracy ± 3.18 mm over 10 m​
Impact Resistant​ 1 m​
Working Range​ 30 m​
Range with Detector​ 50 m​
Thread Mount​ 1/4"-20​

What's Included

What's Included

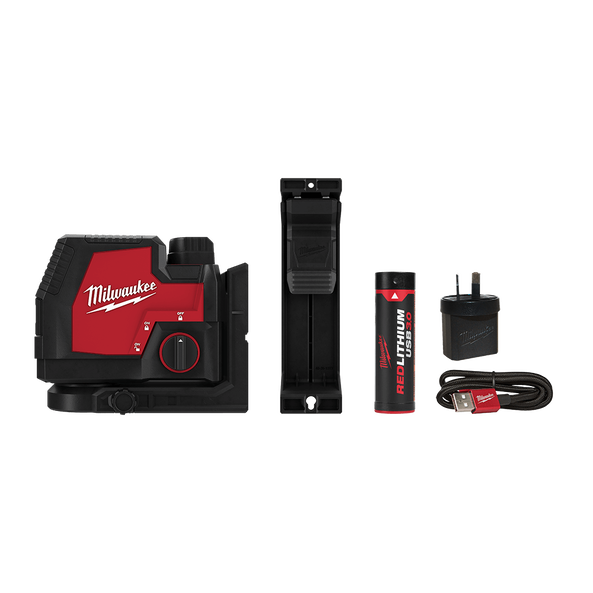

(1) REDLITHIUM™ USB Rechargeable Cross Line Laser (L4CLL)
(1) L4 B3 REDLITHIUM™ USB 3.0Ah Battery
(1) Laser Track Clip with Quick Connect (48351313)
(1) Heavy Duty Plug
(1) AC Adaptor
(1) Carrying Case

REMOVABLE, RECHARGABLE BATTERY

Powered by REDLITHIUM™ USB battery

VERSATILE MOUNTING TECHNOLOGY

Fast and easy alignment and adjustment

HIGH INTENSITY GREEN LASER
