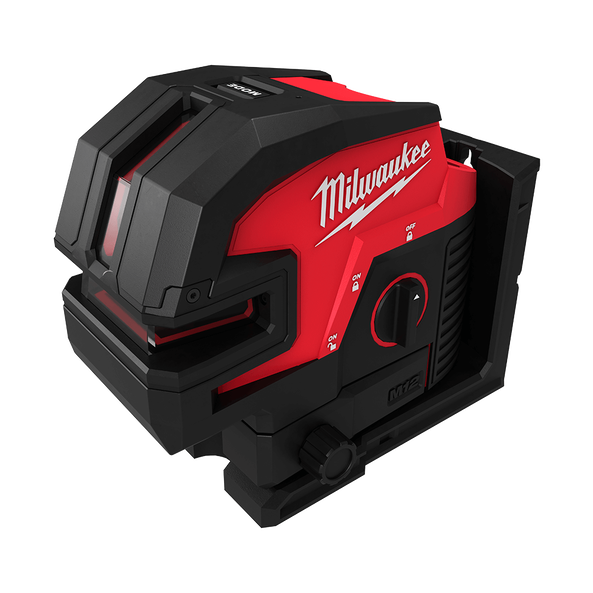

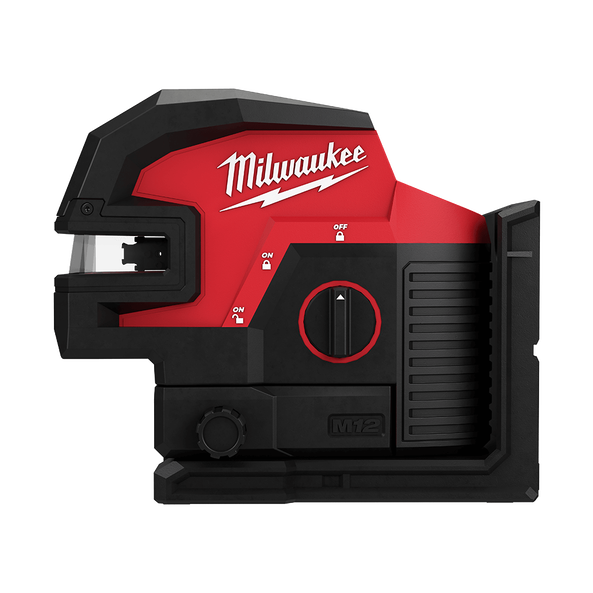

M12™ Cross + 4 Points Laser (Tool Only)

M12C4PLA0C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 159ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

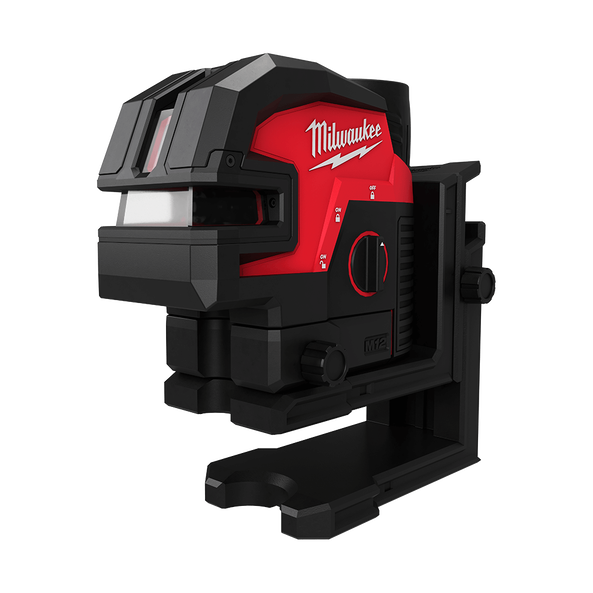

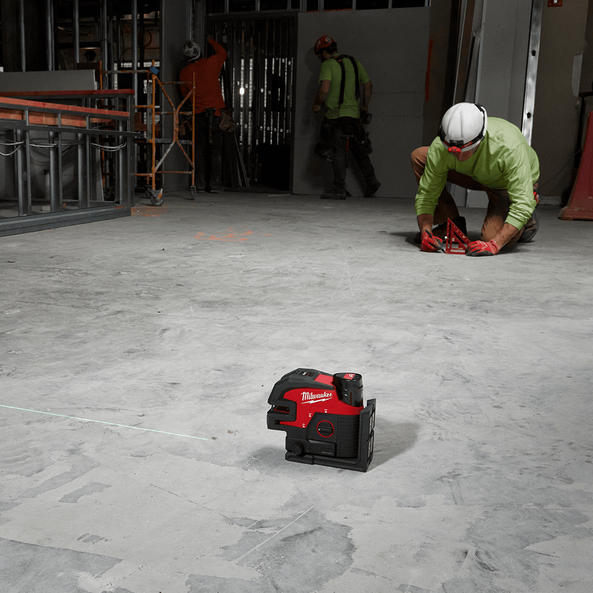

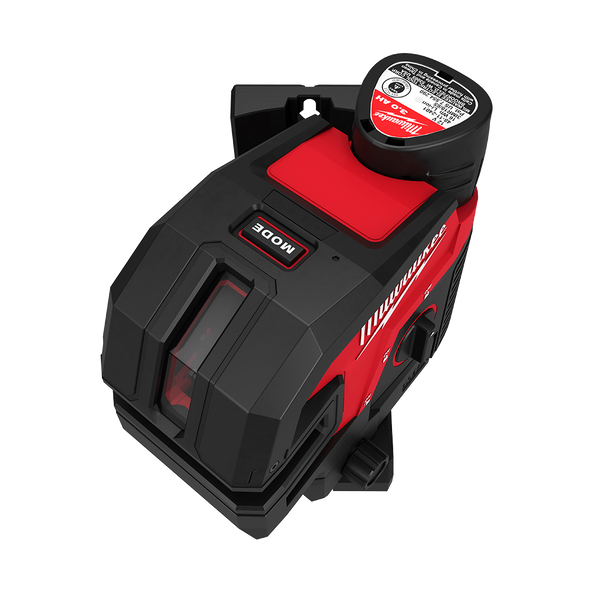

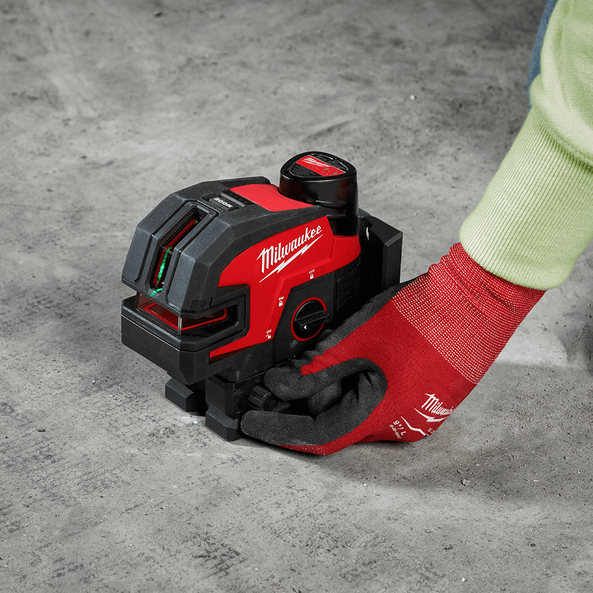

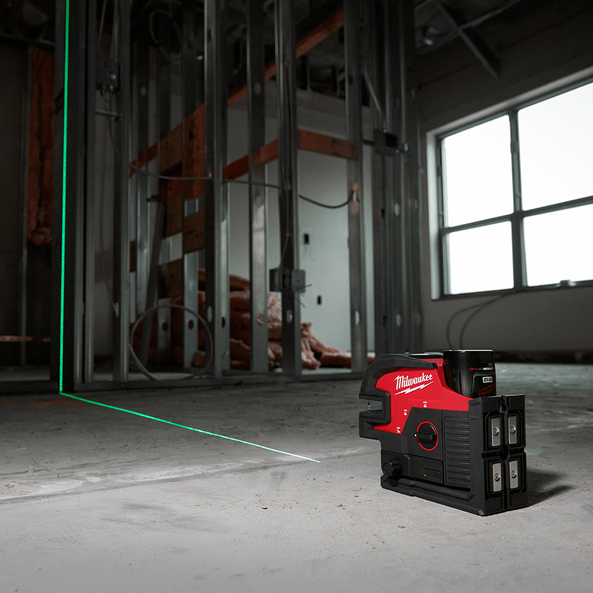

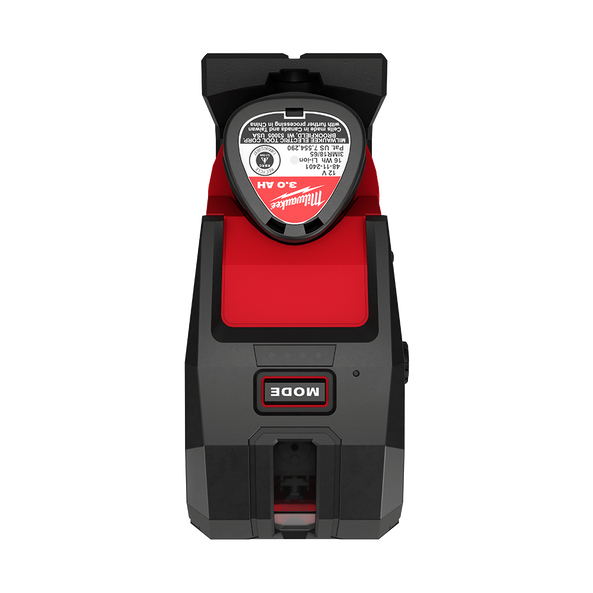

Our M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using our M12™ REDLITHIUM™ 3.0Ah Compact Battery (M12B3 sold separately), users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers our users superior visibility up to 38 Meters for long-range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, our laser is compatible with all M12™ Batteries.

Read More
Specifications What's Included Reviews

Specifications

Features

Features

All Day Runtime - 9+ Hours
Brightest Green Laser Optimized for Distance
Micro Control - Pivots on Point

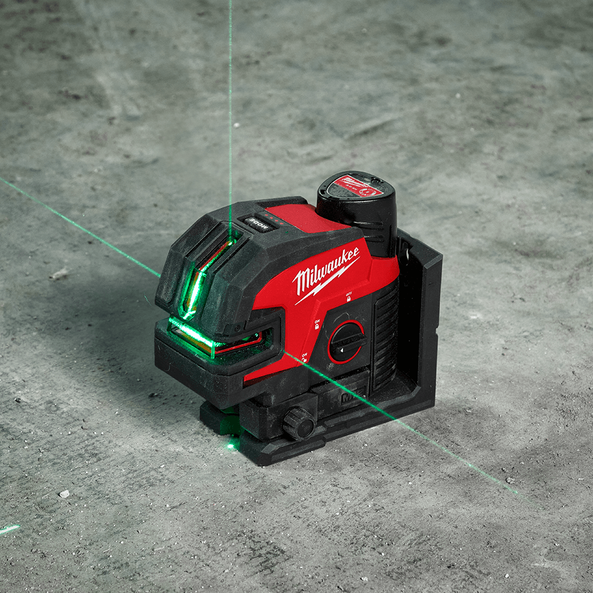

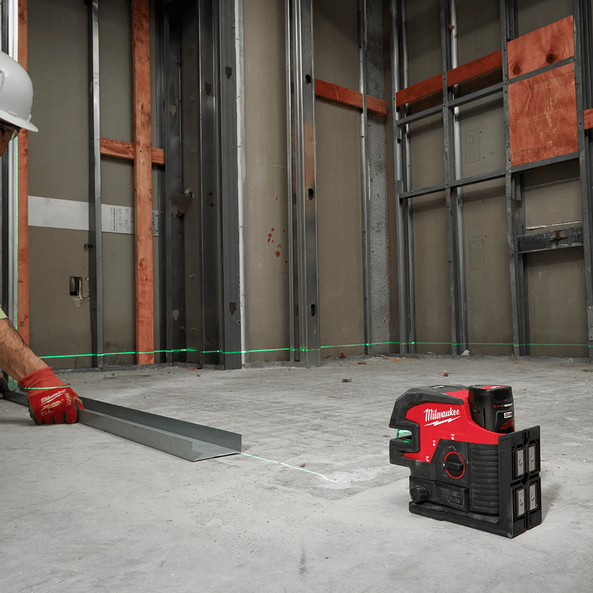

Vertical & horizontal lines plus 4-points to level, align, plumb and square.
38 Meter Working Range
50 Meters Range with Detector
Accuracy: ± 3.18 mm over 10 m​

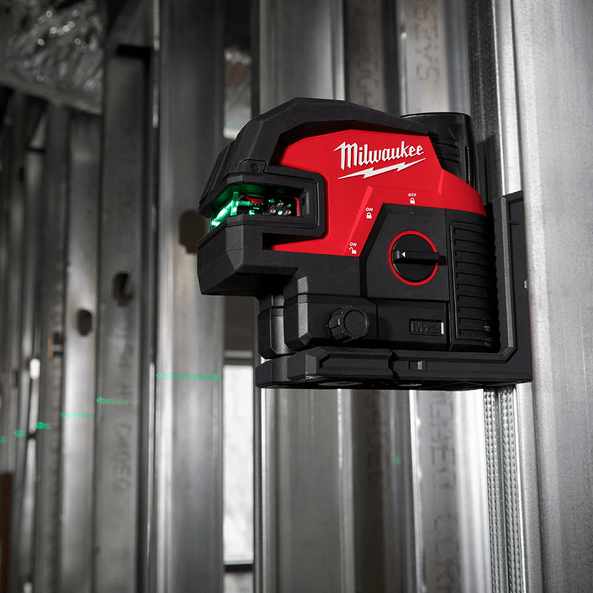

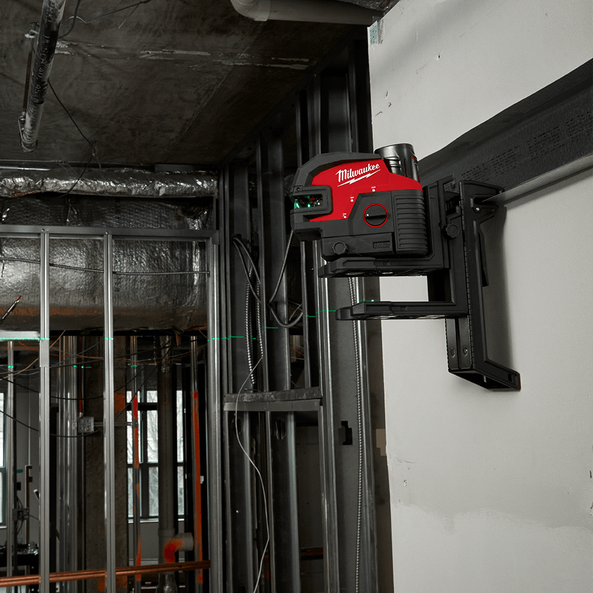

Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
210 Degree Horizontal Fan Angle, 165 Degree Vertical Fan Angle
50mm Plumb Point Access
Self Leveling: +/- 4° Tilt
IP54 Rated: Water and Dust Resistant
1m Impact Resistance
1/4 - 20 & 5/8-11 Thread Mount
3 Year Tool Warranty

Specifications

Specifications

Platform M12™
IP Ratings IP54​
Dimensions 170 x 149 x 81mm
Weight 1.02kg
Warranty 3 Year Tool​
Number of Beams​ Vertical & horizontal lines plus 4-points to level, align, plumb and square
Locking Pendulum​ Yes​
Self-Leveling​ ± 4° Tilt​
Accuracy ± 3.18mm over 10m​
Impact Resistant​ 1m
Working Range​ 38m
Range with Detector​ 50m
Thread Mount​ 1/4"-20, 5/8"-11​

What's Included

What's Included

(1) M12™ Cross + 4 Points Laser [M12C4PLA0C]
(1) Carrying Case
