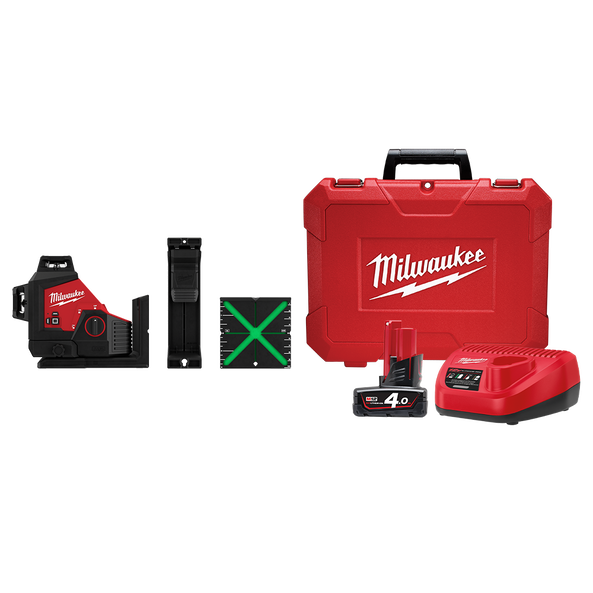

M12™ 3 Plane Laser Kit, , hi-res

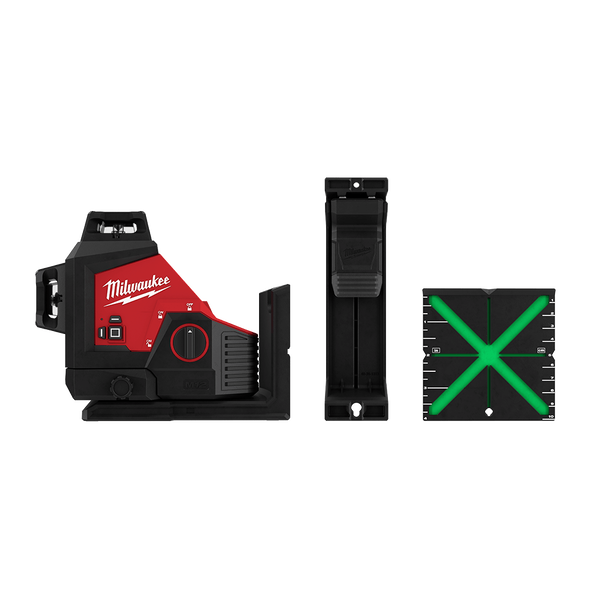

M12™ 3 Plane Laser Kit

M123PLA401C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 10ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Product Details Specifications Resources Reviews Related

Product Details

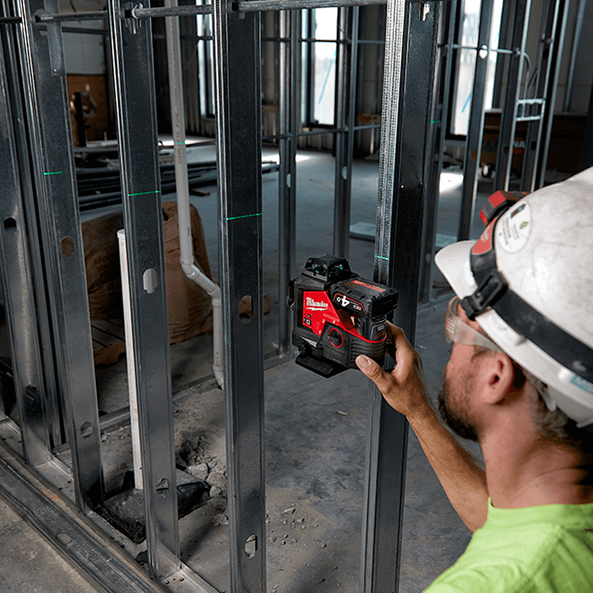

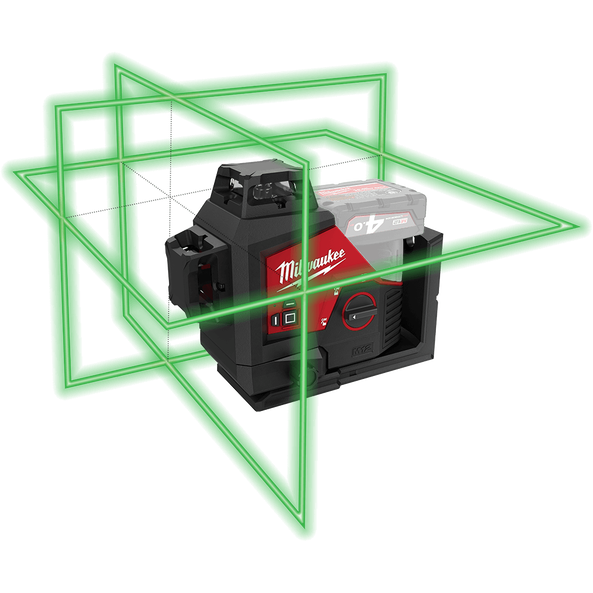

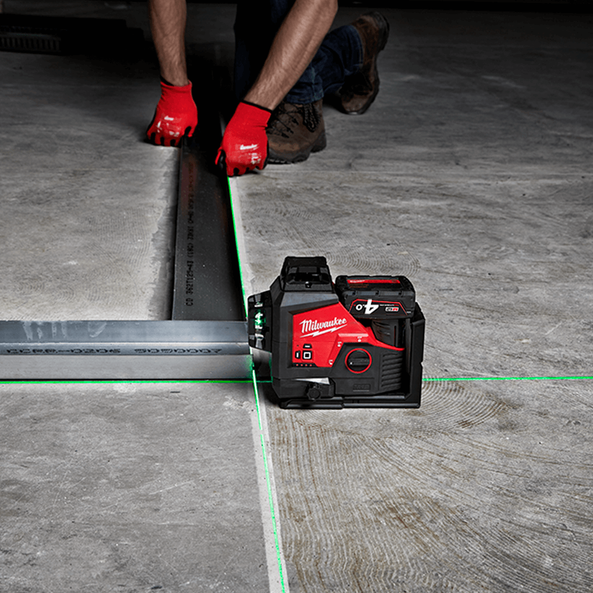

The M12™ 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12™ batteries, users will get 15 hours of continuous run-time with a M12B4 battery pack for ultimate productivity. The high-intensity green laser offers users superior visibility up to 38m for long-range applications. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The M12™ 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.

Specifications

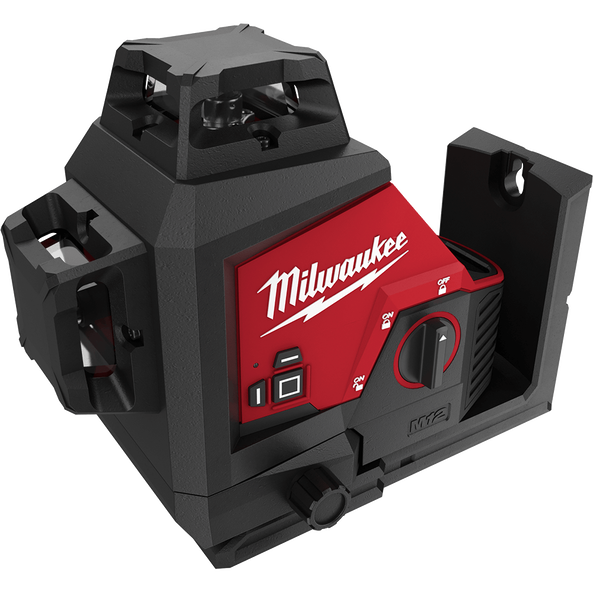

M12™ 3 Plane Laser (Tool Only), , hi-res

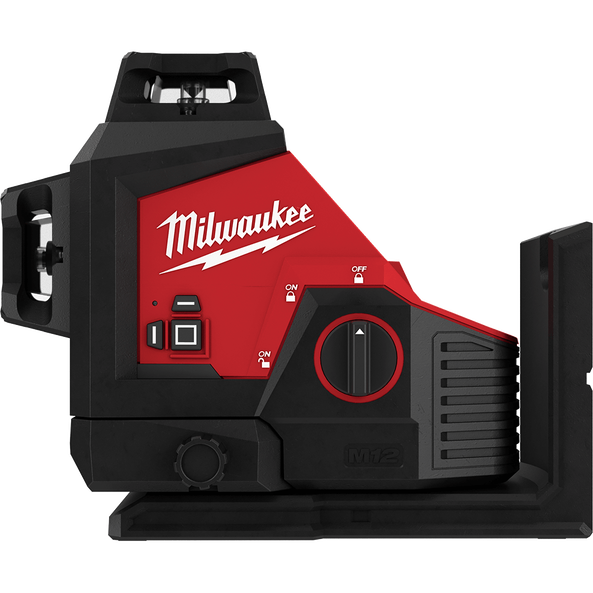

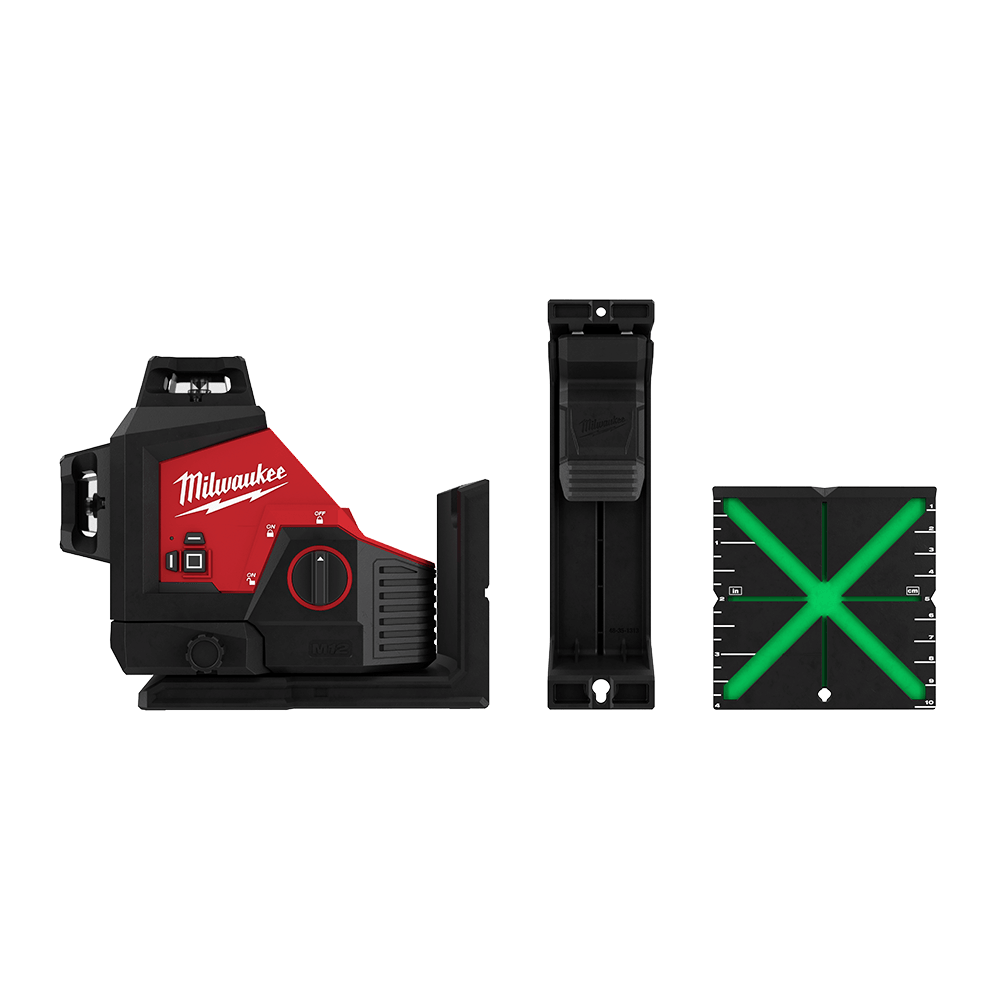

M12™ 3 Plane Laser (Tool Only)

M123PLA-0C
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res
M12™ 3 Plane Laser (Tool Only), , hi-res

M12™ 3 Plane Laser (Tool Only)

M123PLA-0C
In Stock
View Full Details

Features

15 hours of runtime on a single charge using an M12B4 M12™ REDLITHIUM™ 4.0Ah Battery
Visibility range of up to 38 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Fuel gauge on the top and side of the laser allows for fast checking of battery charge

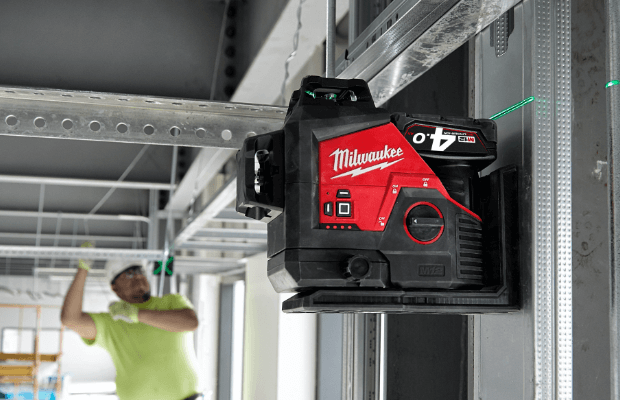

Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8″ tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

Specifications

Platform M12™
IP Ratings IP54​
Dimensions 198 x 104 x 165 mm​
Weight 1.09 kg​
Warranty 3 Years
Number of Beams​ 3 Plane​
Locking Pendulum​ Yes​
Self-Leveling​ ± 4° Tilt​
Accuracy ± 3.18 mm over 10 m​
Impact Resistant​ 1 m​
Working Range​ 38 m​
Range with Detector​ 50 m​
Thread Mount​ 1/4"-20, 5/8"-11​

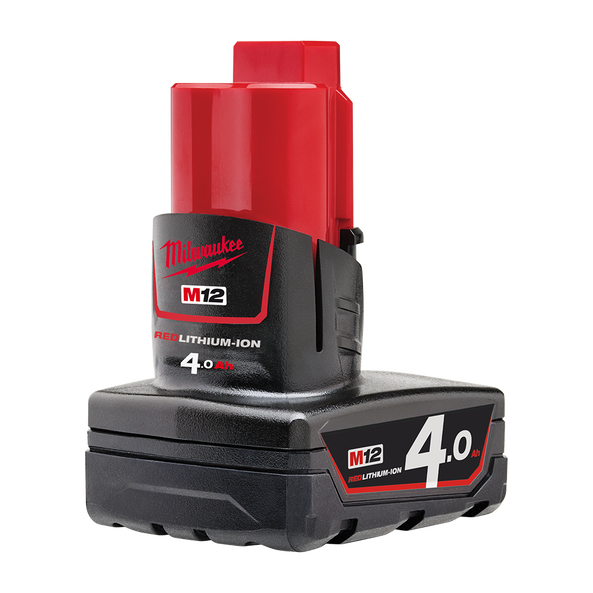

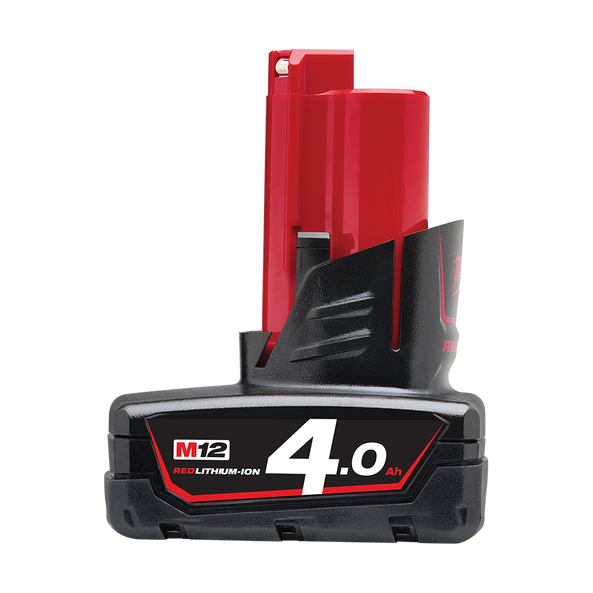

M12™ 4.0Ah REDLITHIUM™-ION Battery Pack

M12™ REDLITHIUM™ 4.0Ah Battery

M12B4
M12™ 4.0Ah REDLITHIUM™-ION Battery Pack
M12™ 4.0Ah REDLITHIUM™-ION Battery Pack
M12™ 4.0Ah REDLITHIUM™-ION Battery Pack

M12™ REDLITHIUM™ 4.0Ah Battery

M12B4
In Stock
View Full Details

Features

REDLINK™ PLUS Electronic Intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection, and productivity.
Fuel gauge onboard: Displays remaining runtime for less downtime on the job.
Versatility: Powers all compatiable Milwaukee M12™ cordless power tools.
Best-in-class construction: offers long lasting performance and durability.

Specifications

Platform M12™
Warranty 2 Years

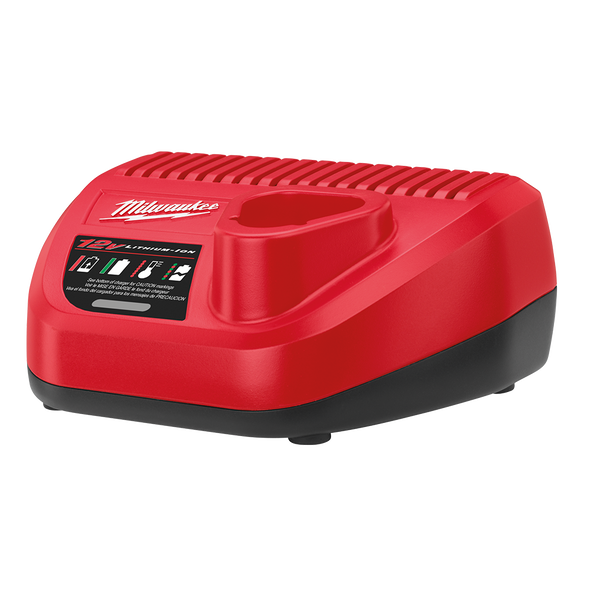

M12™ Lithium-ion Battery Charger

M12™ Lithium-ion Battery Charger

C12C
M12™ Lithium-ion Battery Charger

M12™ Lithium-ion Battery Charger

C12C
In Stock
View Full Details

Features

Single unit simplicity: Charges all M12™ Batteries
Charge management: Charger communicates with the battery pack to ensure a full charge and battery protection
Onboard indicator light: Provides the status of the battery

Specifications

Platform M12™
Voltage 12V
Warranty 2 Years
Weight 0.7kg
Milwaukee Redemptions - 1st October - 30th November 2024 Milwaukee Redemptions - 1st October - 30th November 2024

15+ HOUR RUNTIME

Powered by REDLITHIUM™ battery

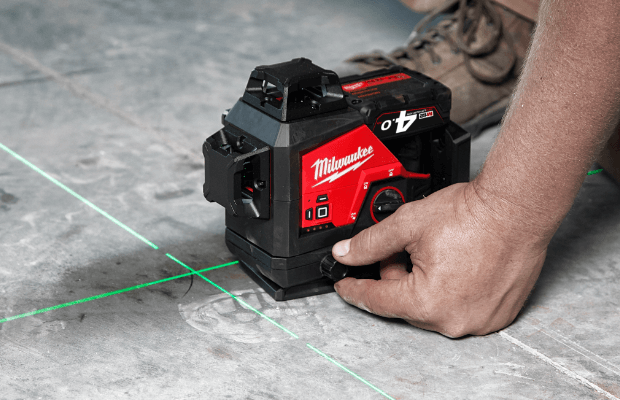

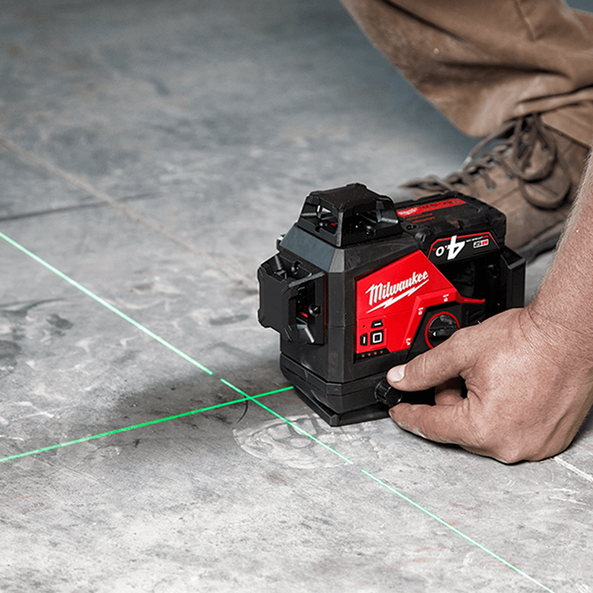

Micro Control, Pivots on Point

Fast and easy point-to-point alignment

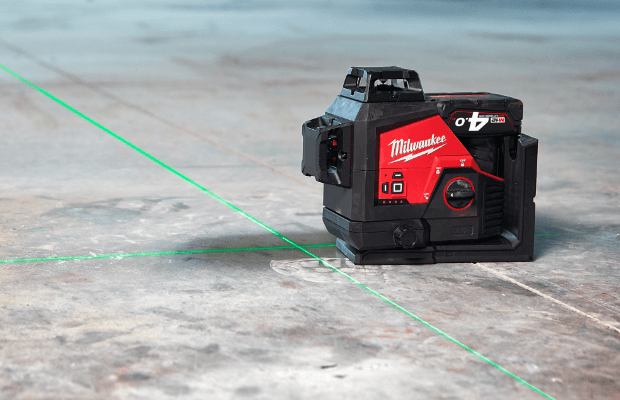

HIGH INTENSITY GREEN LASER

Optimised for distance - 38m visible range.
